PRODUCT DESCRIPTION：

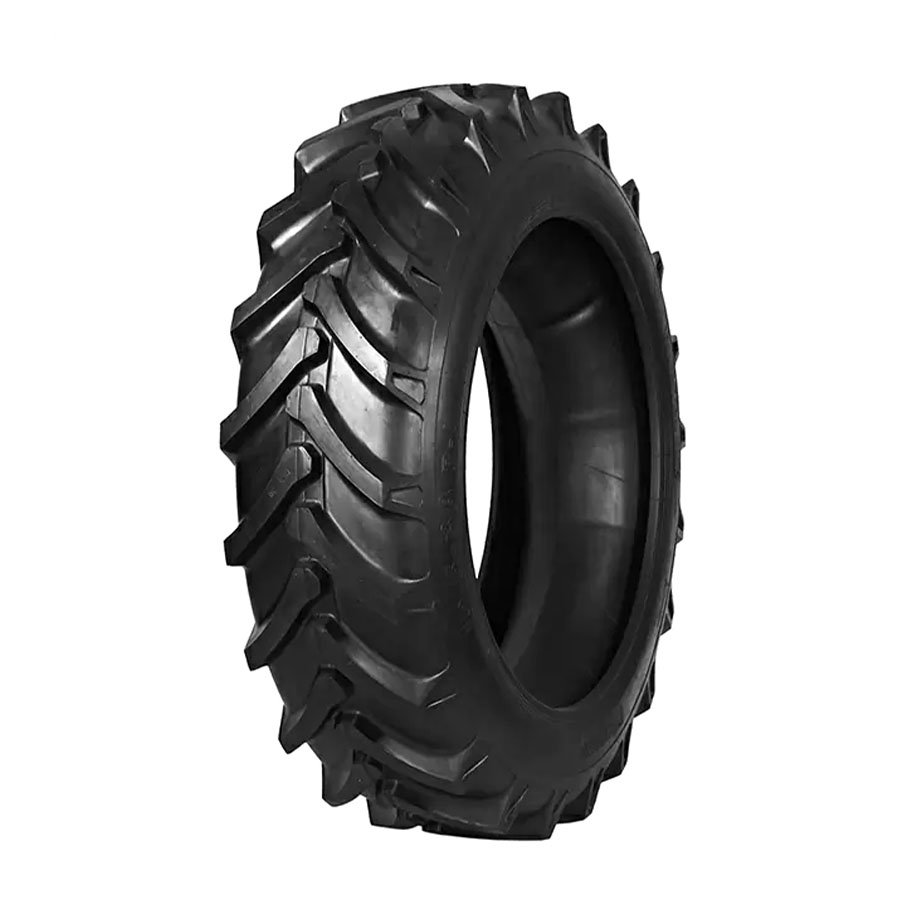

The (R-1) type tire with quite complete specifications has super grip and self-cleaning properties. The special formula design enhances the tire's aging resistance and high wear resistance. It is suitable for farms, lumberyards, fields and other places. Operation.

Super strong shell, wider and deeper pattern design, excellent traction and grip on the ground.

Good wear resistance, tear resistance, good self-cleaning, longer service life.

Suitable for short-distance work on farms, field roads, semi-muddy roads, etc

Inquire now

TIRE SIZE	STANDARD RIM	PLY RATING	TREAD DEPTH(mm)	PARIS OF PATTERN	SECTION WIDTH (mm)	OVERAL DIAMETER (mm)	LOAD CAPACITY (kgs)	PRESSUR (Kpa)
23.1-26	DW20	10	36	19	554	1542	3245	140
20.8-38	W18L	12	38	21	528	1835	4000	200
18.4-42	W16	10	35	22	467	1857	3330	180
18.4-38	W16L	10	37	21	467	1755	3165	180
18.4-34	W16L	10	36	20	467	1655	2990	180
18.4-30	W16L	10	36	19	467	1550	2815	180
18.4-26	DW16	10	35	19	467	1450	2645	200
16.9-38	W15L	10	36	20	464	1685	2760	200
16.9-34	W15L	10	36	20	429	1585	2605	200
16.9-30	W15L	10	36	19	447	1499	2455	200
16.9-28	W15L	10	35	18	430	1435	2380	200
16.9-24	W15L	10	33	18	430	1335	2230	207
15.5-38	W14L	10	34	22	391	1549	1760	350
15.5/80-24	W13	14	35	18	375	1240	3150	280
15-24	W14L	10	32	16	400	1310	2800	230
14.9-30	W13	10	32	21	378	1415	2190	230
14.9-28	W13	10	34	19	378	1365	2120	230
14.9-26	W13	10	32	20	378	1315	2055	230
14.9-24	W15L	10	22	17	378	1265	1990	250
13.6-38	W12	10	34	22	328	1548	2215	250
13.6-28	W12	10	31	19	345	1310	1910	250
13.6-24	W12	10	30	18	345	1210	1790	240
12.4-28	W11	10	29	20	315	1260	1600	240
12.4-24	W11	10	29	18	315	1160	1450	240
12-38	W11	10	35	23	298	1563	1600	210
11.2-38	10.00	10	32	22	284	1448	1180	221
11.2-28	W10	10	28	18	285	1205	1490	310
11.2-24	W10	8	26	18	285	1105	1225	240
10.0/75-15.3	9.00	10	28.5	20	260	892	1625	390
9.50-24	W8	8	25	21	240	1050	1110	280
9.50-20	W8	8	25	19	240	1050	955	280
8.5-20	W7	8	24	20	210	895	715	260
8.3-24	W7	6	24	23	210	995	810	240
8.3-20	W7	8	24	20	210	895	715	260
7.50-20	5.50F	8	21	24	205	910	800	230
7.50-16	5.50F	8	21	19/22	205	810	700	230
6.00-16	4.50E	8	19	19	165	745	520	270
6.00-12	4.50E	8	20	16	165	640	450	270
5.50-17	4.50E	6	18	/	140	750	780	520
5.00-12	4.50E	6	15	13	145	590	320	210
