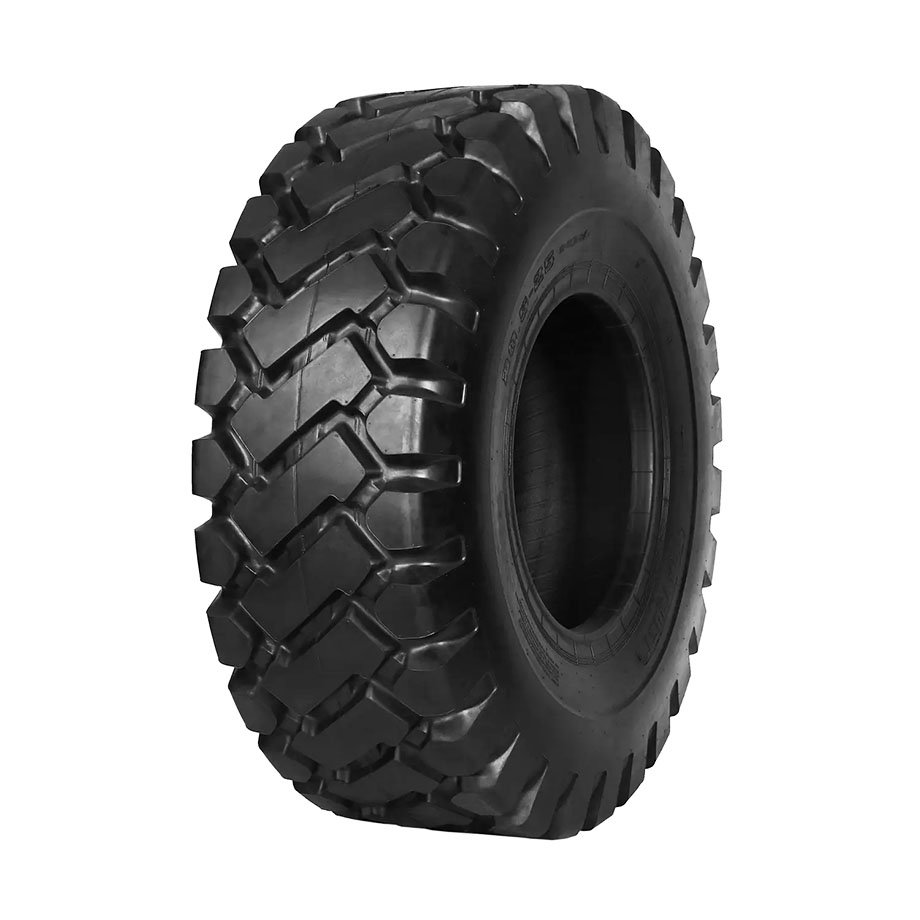

E-3/L-3 NEW

_0042_E3L3NEW

PRODUCT DESCRIPTION：

. The pattern has a large ground contact area and the block pattern has good grip properties.

. It is suitable for a wide range of construction machinery such as scrapers, heavy tippers, loaders, and bulldozers.

. Traction performance and floating performance are both 50%. The improved material formulation gives the tire greater resistance to wear, cuts, and punctures.

Inquire now

TIRE SZE	STANDARD RIM	PLY RATNG	DEEP (mm)	SEGTION WIDTH (mm)	OVERALL DLAMETER (mm)	LOAD (kg)	PRESSURE (Kpa)	(KM/H)	TYPE
26.5-25	22	28	35	675	1750	10000	350	50/10	TT/TL
26.5-25	22	32	35	675	1750	11200	425	50/10	TT/TL
23.5-25	19.5	24	32	595	1615	8000	350	50/10	TT/TL
23.5-25	19.5	20	32	595	1615	7300	300	50/10	TT/TL
20.5-25	17	24	29	520	1490	6700	400	50/10	TT/TL
20.5-25	17	20	29	520	1490	6000	325	50/10	TT/TL
20.5/70-16	10	14	16	353	915	1600	390	50/10	TT
17.5-25	14	20	27	445	1350	4250	400	50/10	TT/TL
17.5-25	14	16	27	445	1350	4250	300	50/10	TT/TL
16/70-20	13	18	25	410	1075	3350	450	50/10	TT
